WELL ANALYZER (MODEL E)

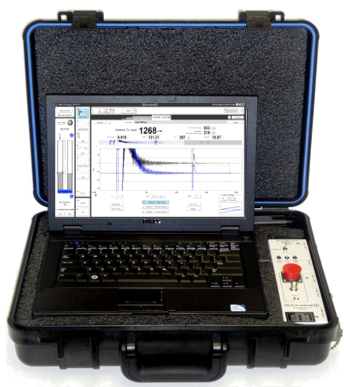

Compact, rugged, and designed for use in hot or cold, humid or dry climates, The Well Analyzer is a computerized instrument for acquiring liquid level data, acoustic pressure transient data, dynamometer data, and motor power / current data. The Well Analyzer package contains a notebook computer, software, analog to digital converters, and sensors.

FEATURES



SPEC


  • Sigma-Delta Analog to Digital Converters
  • Precision Sensors
  • Shielded Cables
  • Windows Software
  • 75 lbs (35 kg)
  • Shipped in 2 packages, 20" x 20" x 20" each



The Well Analyzer is an integrated artificial lift data acquisition and diagnostic system that allows an operator to maximize oil and gas production and minimize operating expense. Well productivity, reservoir pressure, overall efficiency, equipment loading and well performance are derived from the combination of measurements of surface pressure, acoustic liquid level, dynamometer, power and pressure transient response. This portable system is based on a precision analog to digital converter controlled by a notebook computer with Windows-based application. The Well Analyzer acquires, stores, processes, displays and manages the data at the well site to give an immediate analysis of the well's operating condition.

In addition to the Well Analyzer Model E, different Echometer sensors for Liquid Level, Acoustic Pressure Transient data, Dynamometer, and motor power-current data acquisition need to be available to perform the tests.

To view the Well Analyzer brochure click here.

**Well Analyzers licensed for TAM can be used to acquire data with the TAM software. Please contact Echometer for more information.
