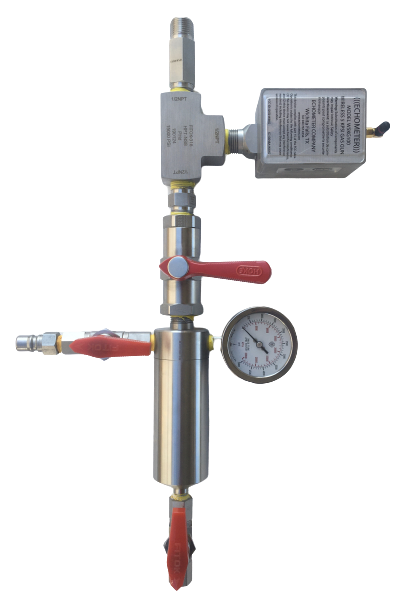

Wireless 5000 PSI Gas Gun

The Wireless 5000 PSI Gas Gun is a manually operated gas gun excellent for use in gas lift, flowing, and high pressure shut-in wells. While it is most commonly used in implosion mode, it can also be operated in explosion mode.




  • Fires manually
  • Operates in Implosion or Explosion mode
  • Designed for use with the wireless system.
  • Limited to 5000 PSI working pressure
  • Rated at 5000 PSI
  • High-performance microphone
  • 7 cubic inch volume chamber
  • 5000 PSI pressure gauge
  • 5000 PSI pressure transducer


The Wireless 5000 PSI Gas Gun can be operated in implosion mode on wells with a casing pressure greater than 200 PSI. The 1/2" ball valve is rapidly opened (180 degree rotation) to release gas from the well into the volume chamber. This action generates a rarefaction (negative) pressure pulse. A compressed gas source is not needed in the implosion mode.

Use the explosion mode on low-pressure wells (less than 200 PSI), and where pressurized gas is available at a pressure greater than the casing annulus pressure. In the explosion mode, the gas gun volume chamber is pressured above the casing pressure. Opening the gas valve results in a positive compression pressure wave being generated which travels down the casing annulus gas.

When the Wireless 5000 PSI Gas Gun becomes dirty due to debris, the volume chamber and microphone assembly may be flushed with a solvent to remove the debris. Please refer to the W5KG Operating Manual for further instruction on maintenance and operation.

To view the Wireless 5000 PSI Gas Gun Drawing click  here.

Wireless 5000psi Gas Gun Operating Manual here.
